【Suitable for】

For government departments: including courts, procuratorates, hospitals, subways, high-speed rail, prisons, detention centers, labor camps, drug treatment centers, public security bureaus, etc.

For public places: including gymnasiums, entertainment venues (disc hall, dance hall, etc.), airports, railway stations, bus stations, ports, exhibition halls, museums, banks, oil depots, power stations, etc.

【Technical parameters】

1.     This device is equipped with an infrared temperature sensor with high accuracy and high resolution. The measurement error at room temperature is ± 0.5 ° C. When the door is working, the detected human body temperature will be displayed on the door LCD screen in real time. If the abnormal body temperature exceeds the set value, the audible and visual alarm will be issued. Displays the ambient temperature of the site.

2.     This equipment can perform temperature difference compensation according to customer requirements.

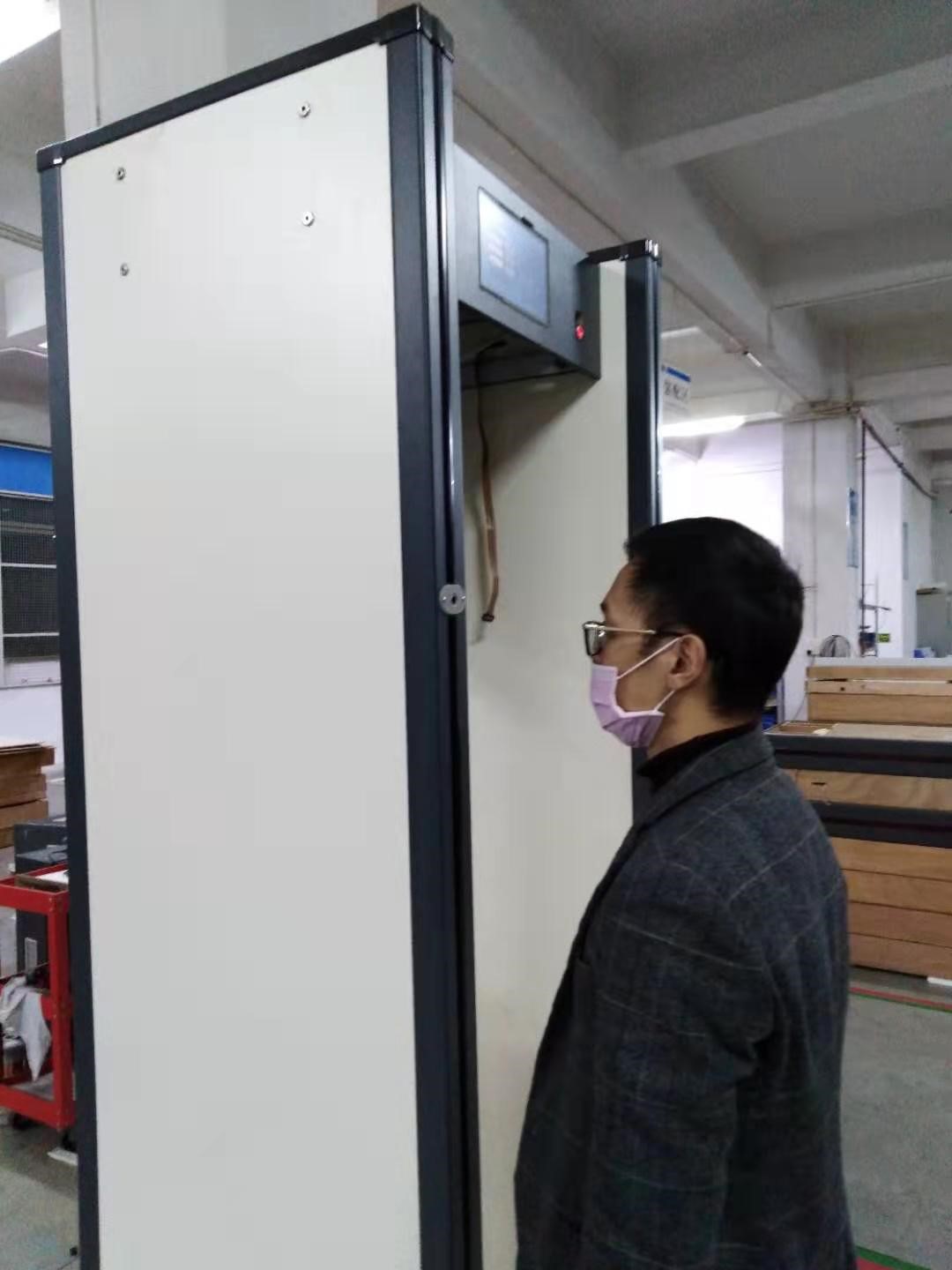

3.     This device can adopt the body temperature measurement method to measure the temperature of the forehead, and the measurement distance of the body temperature of the forehead is 10cm-15cm.

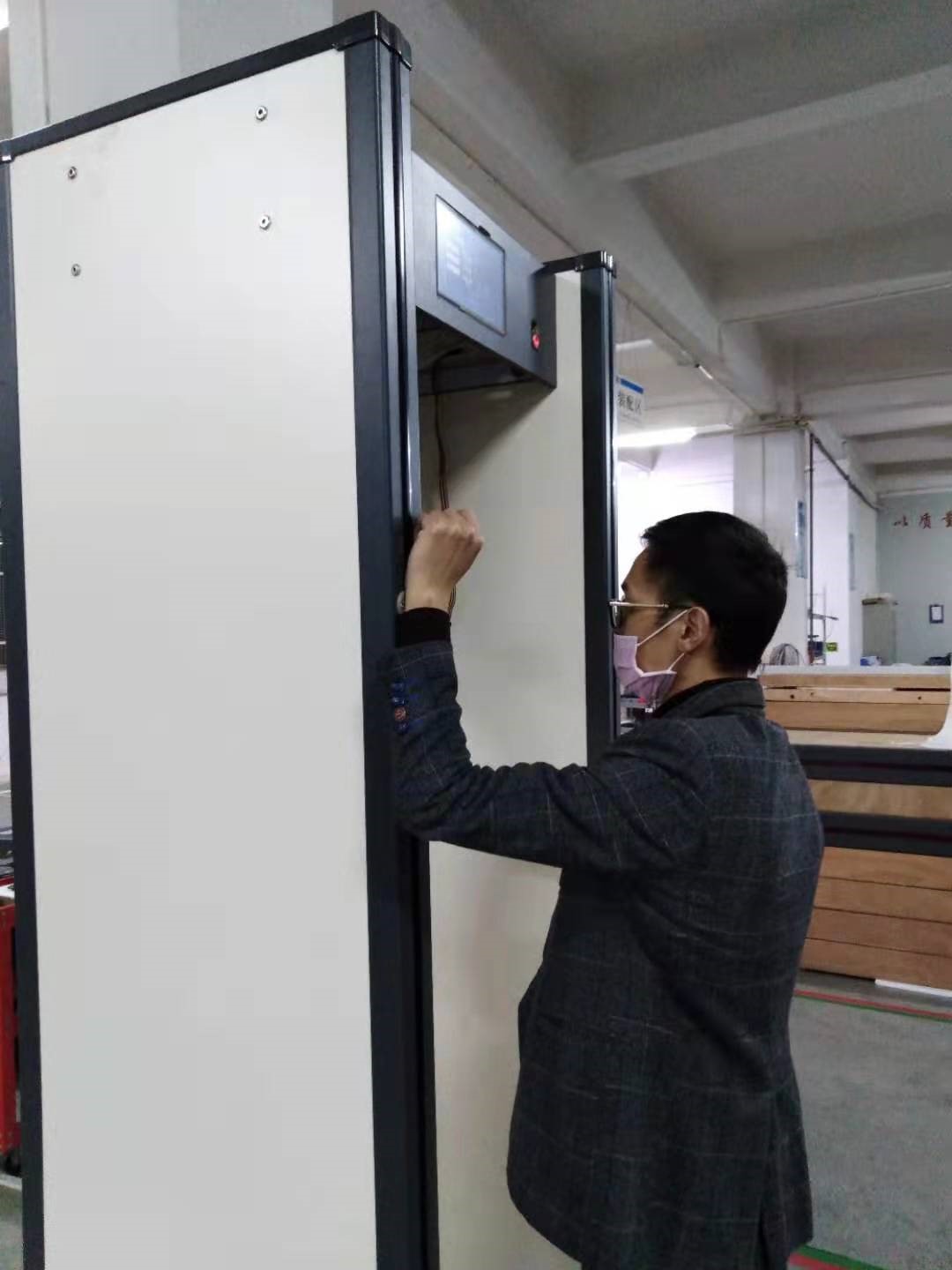

4.     This device can also take a temperature measurement method to measure the temperature of the wrist. The measurement temperature of the wrist is 1cm-3cm, which can prevent the cross-infection of droplets and ensure that each passing person can accurately detect it.

5.     Statistics: The number of people who can pass the statistics and the number of alarms can be counted.

6.     The device is equipped with a 10-inch LCD screen, which can display early warning temperature, real-time body temperature detected, and preset temperature difference compensation.

7.     Detection time: 0.5 seconds to 1 second.

8.     Working temperature: 0 ℃ ~ 45 ℃.

9.     Temperature measurement error: ± 0.5 ℃ (at room temperature)

10.  Working voltage: 12V.

11.  Working current: 900mA.

12.  Working power: 220V / 60HZ.

13.  Color: White / Black (randomly shipped according to stock)

14.  Channel size: ≥2000mm (height) x 700mm (width) x 500mm (depth)

15.  Dimensions: ≥2270mm (height) x 830mm (width) x 500mm (depth)
